Project
Coal Washing Project

Application:Heavy medium cyclone feeding pump
Pump Configuration:EHM-6Eb
Time:2012-2013

Project Description
Excellence pumps are asked to replace the pumps in a European coal washing plant because the previous brand pumps are frequently clogged.

Parameters:
Pump application: heavy medium cyclone feeding pump
Q (Capacity): 360m3/h
H (Head): 27-31m
Solution
Excellence technical engineers had field investigation at the working site to find out the possible problem. They successfully found out the cause of clogging and avoided the problem by update the impeller design based on EHM series slurry pump.
Pump Model: EHM-6Eb
Seal: Centrifugal seal with packing seal

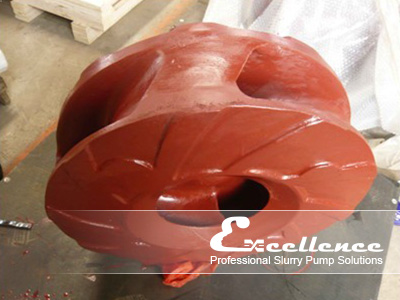

Impeller: Thickened, 4 vanes instead of standard 5 ones
Pre-sales Service

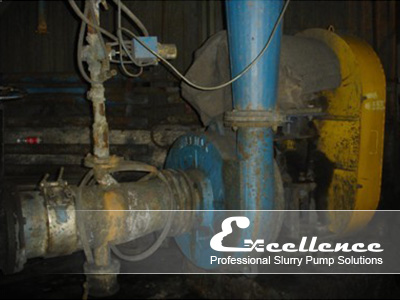

Previous brand pump application site
  On September 14, 2012, with the company of Ukrainian client's staff, Excellence engineers went to visit the scene of contactor pump in local coal washing plant. The client complained about the clogging problem of previous brand products. After on-site check, our engineers solved the problem by adopting special impeller design based on EHM series slurry pump.

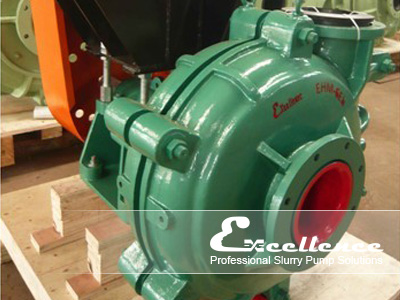

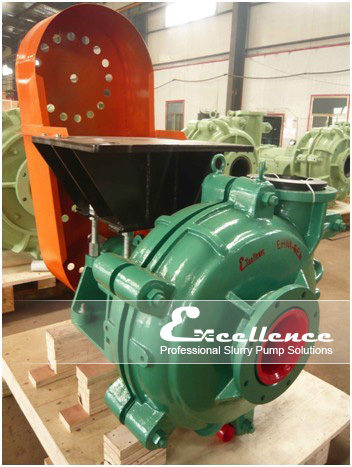

Newly designed EHM-6Eb slurry pump has been shipped to Ukraine
  The special anti-clogging design of impeller allowed pump to have greater capacity and prolonged service life. The pump will be applied in the second half of 2013. We are now waiting for client’s feedback.
