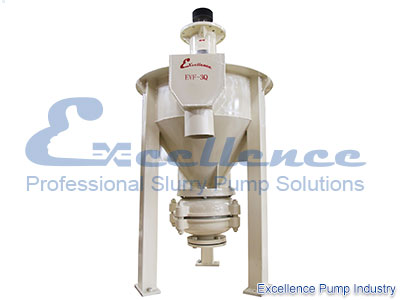

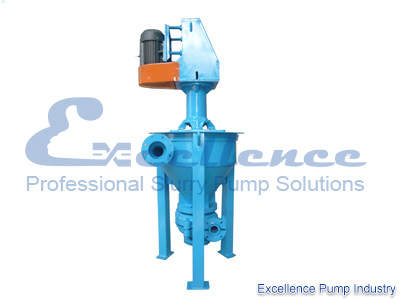

EVF Froth Pump

1. EVF series is suitable for transporting slurry with froth, especially for flotation processing.
2. EVF series can eliminate the froth in the running slurry and work normally even if the feeding slurry is not enough.
3. The feeding suction in the tangent line can accelerate slurry transporting and eliminate part of the froth.
4. The belt and pulley are easy to be altered in order to change the speed according to the working condition.
5. Interchangeable wet parts are made of special alloy, rubber or other wear-resistant materials according to slurry properties.

Download

If you want to get quotation， please click

Parameters and Selection

Top efficiency 55%

Model
```
EVF-6S
```
Capacity
```
55-330 m³/h
```
Head(TDH)
```
6-25 m
```
Allowable Max. Power
```
75 kW
```
Speed
```
350-680 r/min
```
NPSH
```
N/A
```

Top efficiency 55%

Model
```
EVF-4R
```
Capacity
```
15-130 m³/h
```
Head(TDH)
```
6-28 m
```
Allowable Max. Power
```
40 kW
```
Speed
```
500-1050 r/min
```
NPSH
```
N/A
```

Top efficiency 55%

Model
```
EVF-3Q
```
Capacity
```
10-104 m³/h
```
Head(TDH)
```
10-28 m
```
Allowable Max. Power
```
20 kW
```
Speed
```
700-1500 r/min
```
NPSH
```
N/A
```

Top efficiency 45%

Model
```
EVF-2Q
```
Capacity
```
7.2-3.3 m³/h
```
Head(TDH)
```
5-30 m
```
Allowable Max. Power
```
15 kW
```
Speed
```
800-1800 r/min
```
NPSH
```
N/A
```

Application and Reference

Series EVF slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc. It is ideal product for the transporting of slurries with lots of froth, especially the slurries in the flotation process.

Typical Application:

Iron Ore Dressing Plant
Copper Concentration Plant
Gold Mine Concentration Plant
Molybdenum Concentration Plant
Potash Fertilizer Plant
Other Mineral Processing Plants
Other industries

EVF

If you want to know more Excellence projects, please click

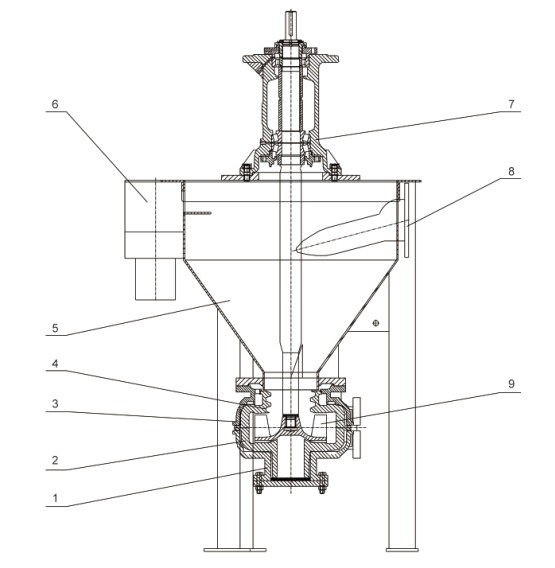

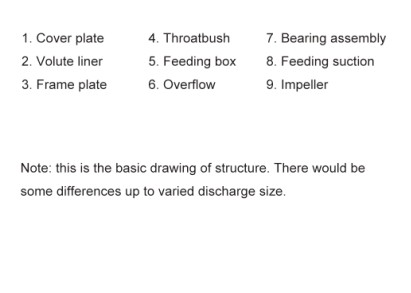

EVF Froth Pump Structure

Standard Configuration

If there isn't any specified requirment, Excellence pump provides the following standard configuration:

Shaft seal type:
```
Centrifugal seal with packing seal
```
Discharge direction:
```
Upright
```
Connection type:
```
Customized
```
Pump color:
```
Green
```
Package:
```
Fumigation-free wooden packaging
```

If you want to know more pump standard ,please click here to ask for sales engineer.
