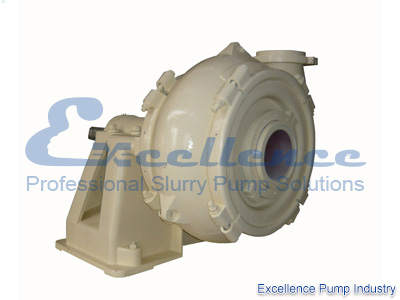

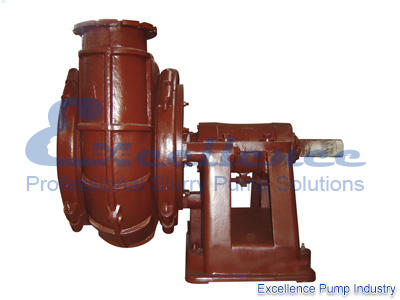

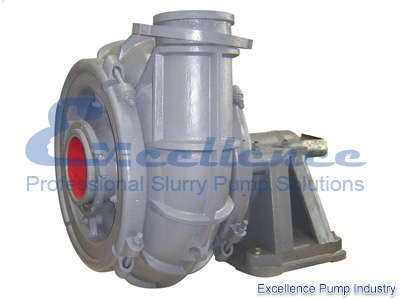

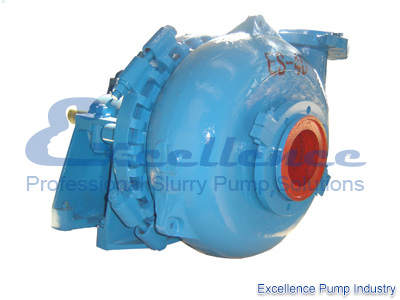

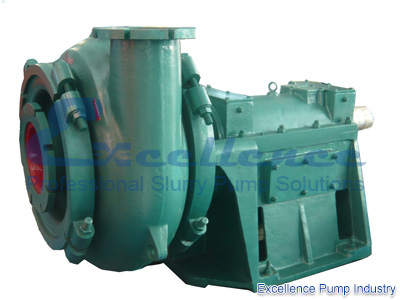

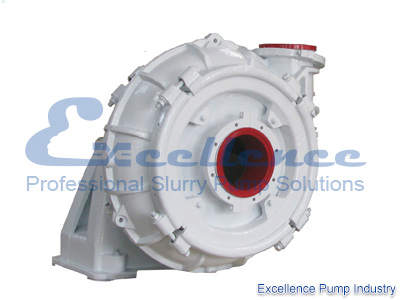

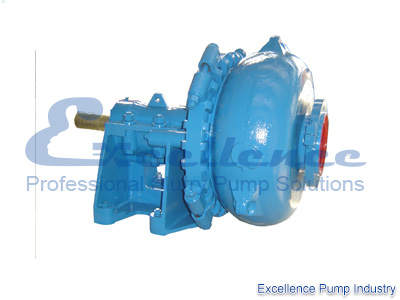

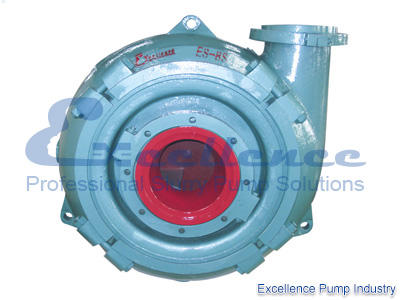

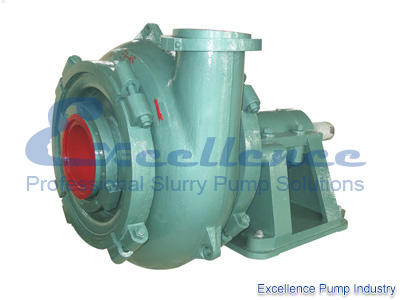

ES Gravel Pump

1. Broad path created by single casing and clamp bands connection;
2. Unique design to make maintenance and wet parts replacement convenient;
3. The wet parts are made of Ni-hard and high-chrome wear-resistant alloys with good anti-corrosive property;
4. The discharge direction of pump can be oriented in any direction of 360°;
5. The standard seal type is packing seal.
6. Good performance of NPSH.

Download

If you want to get quotation， please click

Parameters and Selection

Top efficiency 72%

Model
```
ES-16TU
```
Capacity
```
720-4320 m³/h
```
Head(TDH)
```
12-48 m
```
Allowable Max. Power
```
1200 kW
```
Speed
```
250-500 r/min
```
NPSH
```
3-6 m
```

Top efficiency 72%

Model
```
ESG-14TU
```
Capacity
```
324-3600 m³/h
```
Head(TDH)
```
26-70
```
Allowable Max. Power
```
1200 kW
```
Speed
```
300-500 r/min
```
NPSH
```
3-6 m
```

Top efficiency 70%

Model
```
ES-14G
```
Capacity
```
720-3600 m³/h
```
Head(TDH)
```
18-44 m
```
Allowable Max. Power
```
600 kW
```
Speed
```
300-500 r/min
```
NPSH
```
3-9 m
```

Top efficiency 68%

Model
```
ES-12G
```
Capacity
```
576-3024 m³/h
```
Head(TDH)
```
8-70 m
```
Allowable Max. Power
```
600 kW
```
Speed
```
300-700 r/min
```
NPSH
```
2-8 m
```

Top efficiency 73%

Model
```
ESG-10G
```
Capacity
```
288-2808 m³/h
```
Head(TDH)
```
16-80 m
```
Allowable Max. Power
```
600 kW
```
Speed
```
350-700 r/min
```
NPSH
```
2-10 m
```

Top efficiency 65%

Model
```
ES-10G
```
Capacity
```
360-1440 m³/h
```
Head(TDH)
```
10-60 m
```
Allowable Max. Power
```
600 kW
```
Speed
```
400-850 r/min
```
NPSH
```
1.5-4.5 m
```

Top efficiency 72%

Model
```
ESG-8S
```
Capacity
```
180-1440 m³/h
```
Head(TDH)
```
24-80 m
```
Allowable Max. Power
```
560 kW
```
Speed
```
500-950 r/min
```
NPSH
```
2.5-5 m
```

Top efficiency 65%

Model
```
ES-8S
```
Capacity
```
216-936 m³/h
```
Head(TDH)
```
8-52 m
```
Allowable Max. Power
```
560 kW
```
Speed
```
500-1000 r/min
```
NPSH
```
3-7.5 m
```

Top efficiency 60%

Model
```
ES-6E
```
Capacity
```
126-576 m³/h
```
Head(TDH)
```
6-52 m
```
Allowable Max. Power
```
120 kW
```
Speed
```
800-1400 r/min
```
NPSH
```
3-4.5 m
```

Top efficiency 58%

Model
```
ES-4D
```
Capacity
```
36-250 m³/h
```
Head(TDH)
```
5-52 m
```
Allowable Max. Power
```
60 kW
```
Speed
```
600-1400 r/min
```
NPSH
```
2.5-3.5 m
```

Application and Reference

Series ES slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.

Typical Application:

Sand Excavation
Coal Washery
Power Plant
Mineral Processing Plants
Other industries

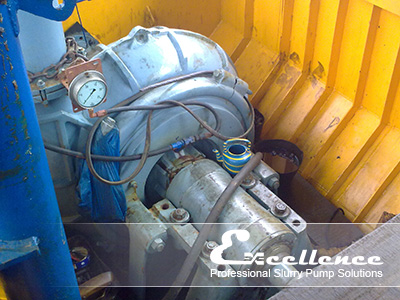

ES-10G| Dredging in Asia

ES-12G| Sand Mining in Africa

ES-12G| Coal Washing in Asia

If you want to know more Excellence projects, please click

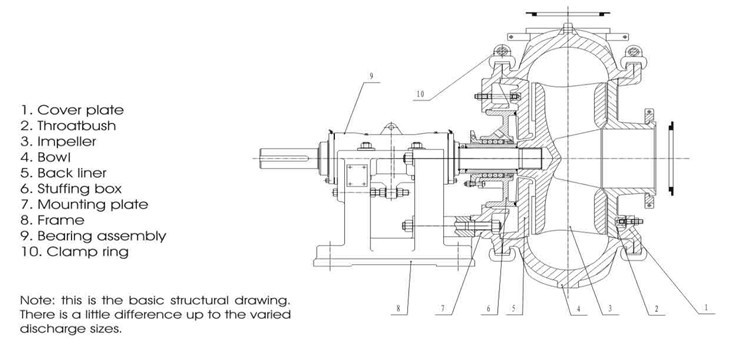

ES Gravel(Sand) Pump Structure

Standard Configuration

If there isn't any specified requirment, Excellence pump provides the following standard configuration:

Shaft seal type:
```
Centrifugal seal with packing seal
```
Discharge direction:
```
Upright
```
Connection type:
```
Customized
```
Pump color:
```
Green
```
Package:
```
Fumigation-free wooden packaging
```

If you want to know more pump standard ,please click here to ask for sales engineer.
