EZG Slurry Pump

1. CAM modern design with optimal hydraulic performance and reliability design ensure long MTBF (mean time between events);
2. The wet parts adopt interchangeable anti-abrasive and anti-corrosive alloy material;
3. The metric bearing is lubricated by oil: scientific lubricating and cooling system ensure that the bearing operates under low temperature;
4. Less power consumption is realized by DC (Direct connection) design. The capacity and head of the pump can be adjusted by altering the outer diameter of impeller;

Parameters and Selection
  • Model
    300EZG
  • Capacity
    171.2-533.3 l/s
  • Head(TDH)
    34.5-93.4 m
  • Allowable Max. Power
    542.8 kW
  • Speed
    740,980 r/min
  • NPSH
    1.4-6.9 m
  • Model
    250EZG
  • Capacity
    99.4-400 l/s
  • Head(TDH)
    36.4-90.1 m
  • Allowable Max. Power
    421.2 kW
  • Speed
    740,980 r/min
  • NPSH
    1.4-7.3 m
  • Model
    200EZG
  • Capacity
    97.9-300 l/s
  • Head(TDH)
    38-94.2 m
  • Allowable Max. Power
    342.9 kW
  • Speed
    740,980 r/min
  • NPSH
    1.1-6.7 m
  • Model
    150EZG
  • Capacity
    64.8-200 l/s
  • Head(TDH)
    35.2-90 m
  • Allowable Max. Power
    215 kW
  • Speed
    740,980 r/min
  • NPSH
    0.6-3.8 m
  • Model
    100EZG
  • Capacity
    30.9-116.7 l/s
  • Head(TDH)
    23.9-91.8 m
  • Allowable Max. Power
    124.9 kW
  • Speed
    980,1480 r/min
  • NPSH
    0.8-6 m
  • Model
    80EZG
  • Capacity
    15.4-56.7 l/s
  • Head(TDH)
    26.1-91.6 m
  • Allowable Max. Power
    73.7 kW
  • Speed
    740,980 r/min
  • NPSH
    0.8-5.2 m
  • Model
    65EZG
  • Capacity
    10.5-31.7 l/s
  • Head(TDH)
    25.4-61 m
  • Allowable Max. Power
    28.8 kW
  • Speed
    980,1480 r/min
  • NPSH
    1.3-4.5 m
Application and Reference
Series EZG slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc. It is used in the various working sites including grinding hydrocyclone feeding pump, magnetic separator feeding pump, underflow slurry pump (thickener underflow pump, filter separator underflow pump), flotation feeding pump, vibrating sieve feeding pump, shaking grading pressure pump, concentrate pump, tailing pump.

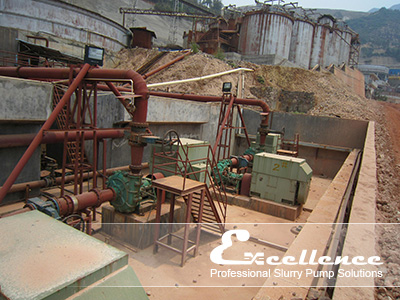

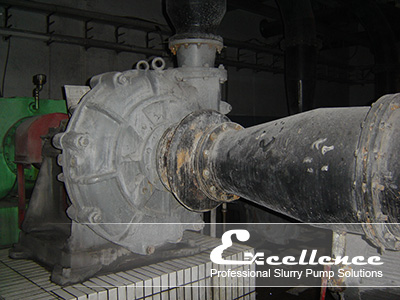

Typical Application:
  • Iron Ore Dressing Plant
  • Copper Concentration Plant
  • Gold Mine Concentration Plant
  • Molybdenum Concentration Plant
  • Potash Fertilizer Plant
  • Other Mineral Processing Plants
  • Alumina Industry
  • Coal Washery
  • Power Plant
  • Sand Excavation
  • Building Material Industry
  • Chemical Industry
  • Other industries

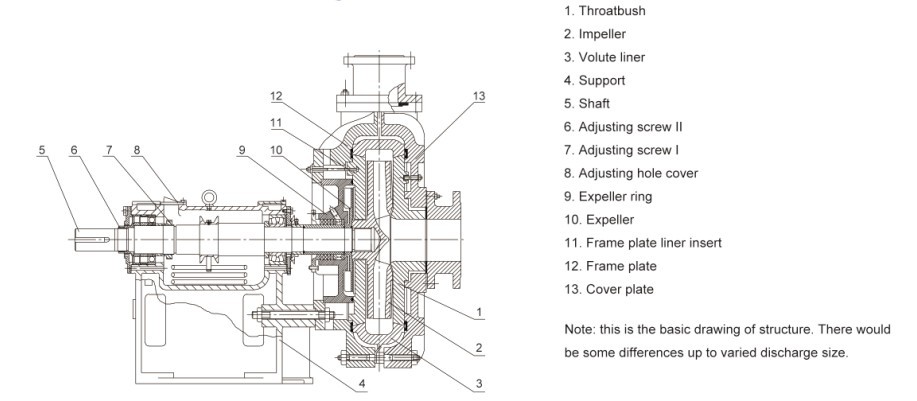

EZG Slurry Pump Structure



Standard Configuration
If there isn't any specified requirment, Excellence pump provides the following standard  configuration:

  • Shaft seal type:
    Centrifugal seal with packing seal
  • Discharge direction:
    Upright
  • Connection type:
    Customized
  • Pump color:
    Green
  • Package:
    Fumigation-free wooden packaging
If you want to know more pump standard ,please click here to ask for sales engineer.
