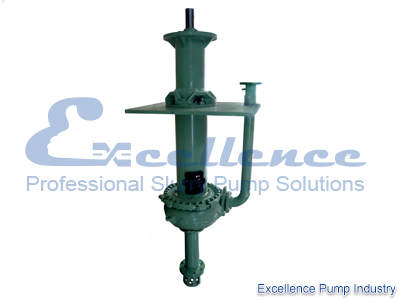

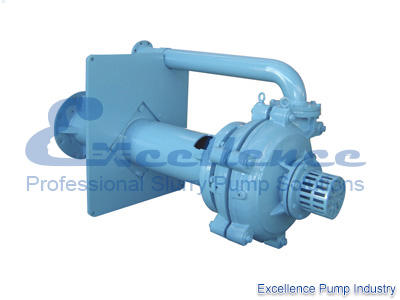

EV Slurry Pump

1. Compared to traditional sump pumps, EV series sump pumps have superb performance in capacity, head and efficiency.
2. Unique cantilevered design makes EV series work normally even if the suction volume is not enough.
3. Various pump models are available including traditional single-casing pumps as well as pioneering double-casing ones.
4. Don’t need any seal and seal water.

Download

If you want to get quotation， please click

Parameters and Selection

Top efficiency 82%

Model
```
EVHM series
```
Capacity
```
to 3060 m³/h
```
Head(TDH)
```
to 68 m
```
Allowable Max. Power
```
1200 kW
```
Speed
```
250-3800 r/min
```
NPSH
```
2-10 m
```

Top efficiency 80%

Model
```
EVHR series
```
Capacity
```
to 3060 m³/h
```
Head(TDH)
```
to 63 m
```
Allowable Max. Power
```
1200 kW
```
Speed
```
250-3400 r/min
```
NPSH
```
2-12 m
```

Top efficiency 73%

Model
```
EVS series
```
Capacity
```
to 4320 m³/h
```
Head(TDH)
```
to 80 m
```
Allowable Max. Power
```
1200 kW
```
Speed
```
250-1400 r/min
```
NPSH
```
1.5-10 m
```

Application and Reference

Series EV slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.

Typical Application:

Iron Ore Dressing Plant
Copper Concentration Plant
Gold Mine Concentration Plant
Molybdenum Concentration Plant
Potash Fertilizer Plant
Other Mineral Processing Plants
Alumina Industry
Coal Washery
Power Plant
Sand Excavation
Building Material Industry
Chemical Industry
Other industries

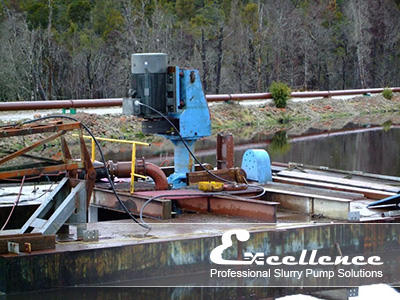

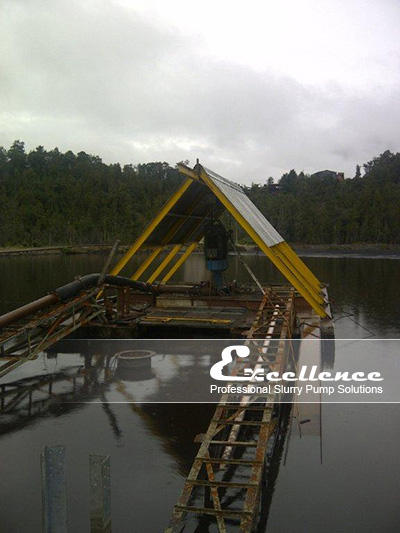

EVHM-6SV| Coal Washery in Australia

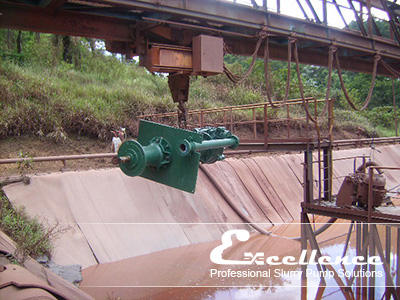

EVHM-4RV| Iron Ore Dressing in Brazil

If you want to know more Excellence projects, please click

EV Slurry Pump Structure

Series EV pumps include EVHM, EVHR, EVLM, EVZG, EVZ, EVS and so on. The clear water performance for every series of products could refer to EHM, EHR, ELM, EZG, EZ, ES and so on. Their structures are based on the horizontal pumps.

The suction pipe could be added and the pipe length could be selected according to customers’ requirement. In that case, packing seal should be kept and the shaft seal water should be added. The pressure of shaft seal water should be a little higher than that of discharge side.

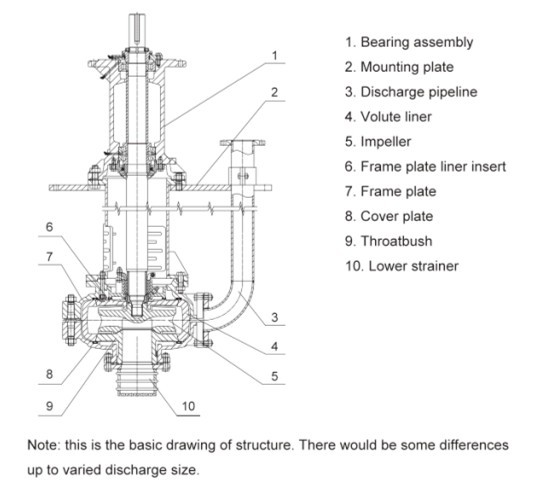

EV Slurry Pump Structure:

Standard Configuration

If there isn't any specified requirment, Excellence pump provides the following standard configuration:

Shaft seal type:
```
Centrifugal seal with packing seal
```
Discharge direction:
```
Upright
```
Connection type:
```
Customized
```
Pump color:
```
Green
```
Package:
```
Fumigation-free wooden packaging
```

If you want to know more pump standard ,please click here to ask for sales engineer.
