EVM Slurry Pump

1. Single casing structure with the advantages of light weight, small volume, easy installation;
2. Anti-abrasive wet parts made of high-chrome alloys;
3. Transmission shaft and suction pipe could be chosen according to liquid surface of the slurry pool;
4. Slurry pump agitator could be installed to improve transfer efficiency;
5. Able to run smoothly under various speeds.

Download

If you want to get quotation， please click

Parameters and Selection

Top efficiency 60%

Model
```
EVM-300T
```
Capacity
```
540-1548 m³/h
```
Head(TDH)
```
5.5-26 m
```
Allowable Max. Power
```
200 kW
```
Speed
```
350-700 r/min
```
NPSH
```
N/A
```

Top efficiency 60%

Model
```
EVM-250T
```
Capacity
```
320-2100 m³/h
```
Head(TDH)
```
7-33 m
```
Allowable Max. Power
```
200 kW
```
Speed
```
400-750 r/min
```
NPSH
```
N/A
```

Top efficiency 64%

Model
```
EVM-200S
```
Capacity
```
189-891 m³/h
```
Head(TDH)
```
6.5-37 m
```
Allowable Max. Power
```
110 kW
```
Speed
```
400-850 r/min
```
NPSH
```
N/A
```

Top efficiency 52%

Model
```
EVM-150S
```
Capacity
```
108-479 m³/h
```
Head(TDH)
```
8.5-40 m
```
Allowable Max. Power
```
110 kW
```
Speed
```
500-1000 r/min
```
NPSH
```
N/A
```

Top efficiency 62%

Model
```
EVM-100R
```
Capacity
```
54-289 m³/h
```
Head(TDH)
```
5-36 m
```
Allowable Max. Power
```
75 kW
```
Speed
```
500-1200 r/min
```
NPSH
```
N/A
```

Top efficiency 60%

Model
```
EVM-65Q
```
Capacity
```
18-114 m³/h
```
Head(TDH)
```
5-31.5 m
```
Allowable Max. Power
```
30 kW
```
Speed
```
750-1500 r/min
```
NPSH
```
N/A
```

Top efficiency 40%

Model
```
EVM-40P
```
Capacity
```
17-43.2 m³/h
```
Head(TDH)
```
4-28.5 m
```
Allowable Max. Power
```
15 kW
```
Speed
```
1000-2200 r/min
```
NPSH
```
N/A
```

Application and Reference

Series EVM slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.

Typical Application:

Iron Ore Dressing Plant
Copper Concentration Plant
Gold Mine Concentration Plant
Molybdenum Concentration Plant
Potash Fertilizer Plant
Other Mineral Processing Plants
Alumina Industry
Coal Washery
Power Plant
Sand Excavation
Building Material Industry
Chemical Industry
Other industries

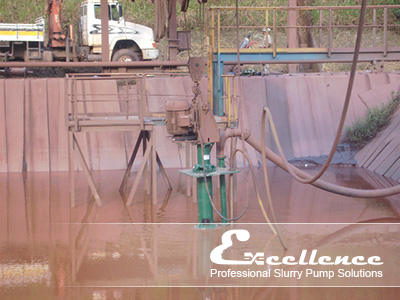

EVM-65Q| Copper Concentration in Africa

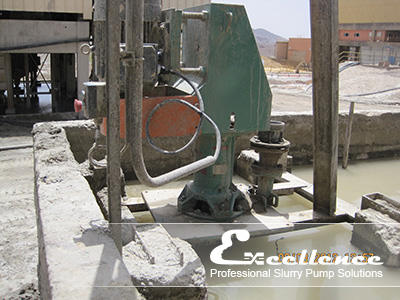

EVM-100R| Iron ore Processing Plant in South America

EVM-150S| Gold Processing Plant in China

If you want to know more Excellence projects, please click

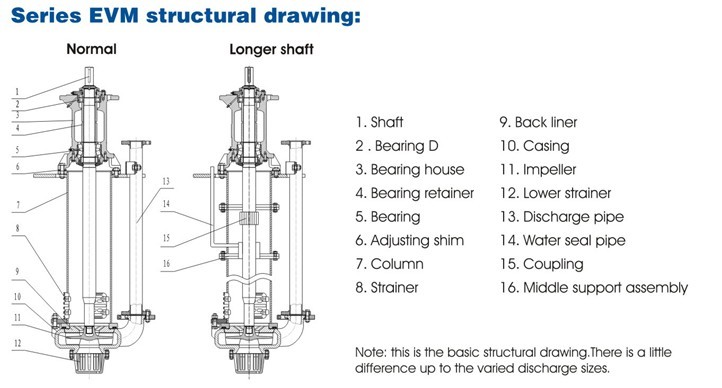

EVM Slurry Pump Structure

Standard Configuration

If there isn't any specified requirment, Excellence pump provides the following standard configuration:

Shaft seal type:
```
Centrifugal seal with packing seal
```
Discharge direction:
```
Upright
```
Connection type:
```
Customized
```
Pump color:
```
Green
```
Package:
```
Fumigation-free wooden packaging
```

If you want to know more pump standard ,please click here to ask for sales engineer.
