EGM Slurry Pump

1. Superb performance in high head application；
2. Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely;
3. Interchangeable anti-abrasive wet parts made of high-chrome alloys;
4. Various drive types: DC(direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control, etc;
5. The shaft seal uses the packing seal, expeller seal and mechanical seal.

Download

If you want to get quotation， please click

Parameters and Selection

Top efficiency 65%

Model
```
EGM-6S
```
Capacity
```
468-1008 m³/h
```
Head(TDH)
```
20-94 m
```
Allowable Max. Power
```
560 kW
```
Speed
```
1400-2200 r/min
```
NPSH
```
4-12 m
```

Top efficiency 64%

Model
```
EGM-4S
```
Capacity
```
324-720 m³/h
```
Head(TDH)
```
30-118 m
```
Allowable Max. Power
```
560 kW
```
Speed
```
600-1000 r/min
```
NPSH
```
3-8 m
```

Top efficiency 50%

Model
```
EGM-3E
```
Capacity
```
126-252 m³/h
```
Head(TDH)
```
12-97 m
```
Allowable Max. Power
```
120 kW
```
Speed
```
600-1400 r/min
```
NPSH
```
2-5 m
```

Top efficiency 47%

Model
```
EGM-2D
```
Capacity
```
68.4-136.8 m³/h
```
Head(TDH)
```
25-87 m
```
Allowable Max. Power
```
60 kW
```
Speed
```
850-1400 r/min
```
NPSH
```
3-7.5 m
```

Top efficiency 20%

Model
```
EGM-1C
```
Capacity
```
16.2-34.2 m³/h
```
Head(TDH)
```
25-92 m
```
Allowable Max. Power
```
30 kW
```
Speed
```
1400-2200 r/min
```
NPSH
```
2-5.5 m
```

Application and Reference

Series EGM slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc. It is used in the various working sites including hydrocyclone feeding pump, magnetic separator feeding pump, underflow slurry pump (thickener underflow pump, filter separator underflow pump), flotation feeding pump, vibrating sieve feeding pump, shaking grading pressure pump, concentrate pump, tailing pump.

Typical Application:

Iron Ore Dressing Plant
Copper Concentration Plant
Gold Mine Concentration Plant
Molybdenum Concentration Plant
Potash Fertilizer Plant
Other Mineral Processing Plants
Alumina Industry
Coal Washery
Power Plant
Sand Excavation
Building Material Industry
Other industries

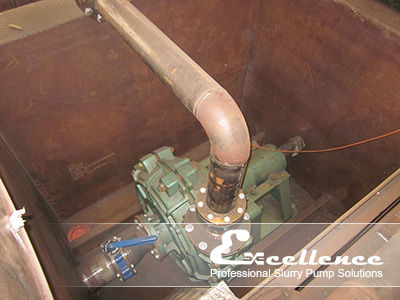

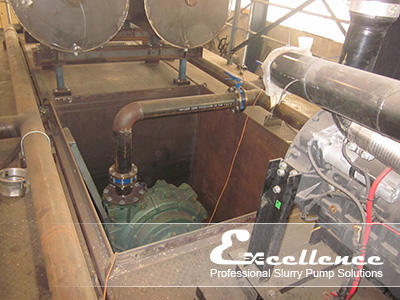

EGM-6S| Coal Washery in Austrialia

EGM

If you want to know more Excellence projects, please click

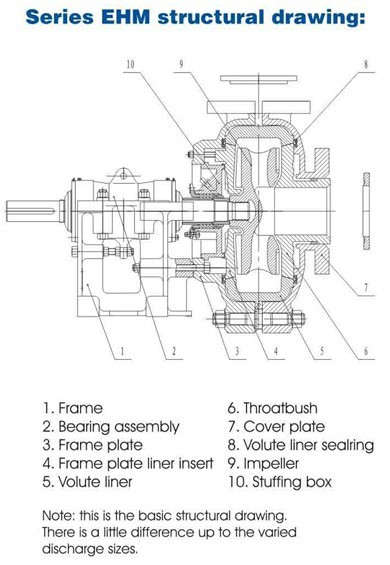

EGM Slurry Pump Structure

EGM series slurry pump is similar to EHM series' structure. But the slight difference in design enable EGM series has superb performance in high head applications.

Standard Configuration

If there isn't any specified requirment, Excellence pump provides the following standard configuration:

Shaft seal type:
```
Centrifugal seal with packing seal
```
Discharge direction:
```
Upright
```
Connection type:
```
Customized
```
Pump color:
```
Green
```
Package:
```
Fumigation-free wooden packaging
```

If you want to know more pump standard ,please click here to ask for sales engineer.
