EZ Slurry Pump

1. CAM design is based on the theories of modern hydromechanics and mechanics.
2. The wet parts adopt interchangeable anti-abrasive and anti-corrosive alloy material.
3. The metric bearing is lubricated by oil; scientific lubricating and cooling system ensure that the bearing operates under low temperature.
4. Complete range of pump models can meet various requirements and site working conditions.

Download

If you want to get quotation， please click

Parameters and Selection

Top efficiency 82.8%

Model
```
300EZ
```
Capacity
```
395-2333 m³/h
```
Head(TDH)
```
9.7-79.9 m
```
Allowable Max. Power
```
630 kW
```
Speed
```
300-980 r/min
```
NPSH
```
3-3.9 m
```

Top Efficiency 77.8%

Model
```
250EZ
```
Capacity
```
272-1573 m³/h
```
Head(TDH)
```
13.1-128.7 m
```
Allowable Max. Power
```
710 kW
```
Speed
```
400-980 r/min
```
NPSH
```
2.7-3.5 m
```

Top efficiency 83.5%

Model
```
200EZ
```
Capacity
```
199-950 m³/h
```
Head(TDH)
```
13-133.7 m
```
Allowable Max. Power
```
560 kW
```
Speed
```
490-980 r/min
```
NPSH
```
2.5-3 m
```

Top efficiency 77.1%

Model
```
150EZ
```
Capacity
```
93-600 m³/h
```
Head(TDH)
```
8.7-91.2 m
```
Allowable Max. Power
```
200 kW
```
Speed
```
490-1480 r/min
```
NPSH
```
1.8-2.5 m
```

Top Efficiency 71.6%

Model
```
100EZ
```
Capacity
```
56-365 m³/h
```
Head(TDH)
```
8.2-100.2 m
```
Allowable Max. Power
```
160 kW
```
Speed
```
700-1480 r/min
```
NPSH
```
1.8-2.5 m
```

Top Efficiency 67.7%

Model
```
80EZ
```
Capacity
```
43-242 m³/h
```
Head(TDH)
```
8-109.8 m
```
Allowable Max. Power
```
160 kW
```
Speed
```
700-1480 r/min
```
NPSH
```
2.1-2.5 m
```

Top Efficiency 63.5%

Model
```
65EZ
```
Capacity
```
20-79 m³/h
```
Head(TDH)
```
6-34.8 m
```
Allowable Max. Power
```
15 kW
```
Speed
```
700-1480 r/min
```
NPSH
```
1.8-2 m
```

Top Effieciency 45.1%

Model
```
50EZ
```
Capacity
```
12-111 m³/h
```
Head(TDH)
```
7.7-110.7 m
```
Allowable Max. Power
```
90 kW
```
Speed
```
700-1480 r/min
```
NPSH
```
1.4-3 m
```

Top Effieciency 52.4%

Model
```
40EZ
```
Capacity
```
4-23 m³/h
```
Head(TDH)
```
9-44.6 m
```
Allowable Max. Power
```
7.5 kW
```
Speed
```
700-1480 r/min
```
NPSH
```
2.5 m
```

Application and Reference

Series EZ slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc. It is used in the various working sites including hydrocyclone feeding pump, magnetic separator feeding pump, underflow slurry pump (thickener underflow pump, filter separator underflow pump), flotation feeding pump, vibrating sieve feeding pump, shaking grading pressure pump, concentrate pump, tailing pump.

Typical Application:

Iron Ore Dressing Plant
Copper Concentration Plant
Gold Mine Concentration Plant
Molybdenum Concentration Plant
Potash Fertilizer Plant
Other Mineral Processing Plants
Alumina Industry
Coal Washery
Power Plant
Sand Excavation
Building Material Industry
Chemical Industry
Other industries

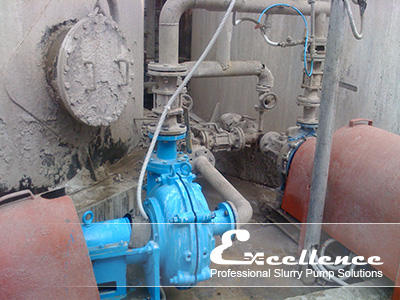

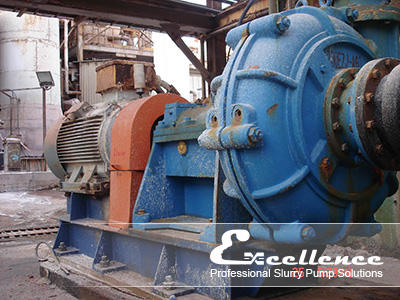

150EZ-A60| Potash Fertilizer Plant in Mid-East

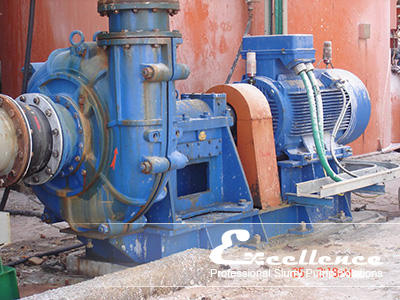

50EZ-A50| Sodium Silicate in Mid-East

If you want to know more Excellence projects, please click

EZ Slurry Pump Structure

EZ slurry pump has various models for different applications. It has double casing horizontal slurry pump and single casing horizontal slurry pump as well as vertical pump ranges.

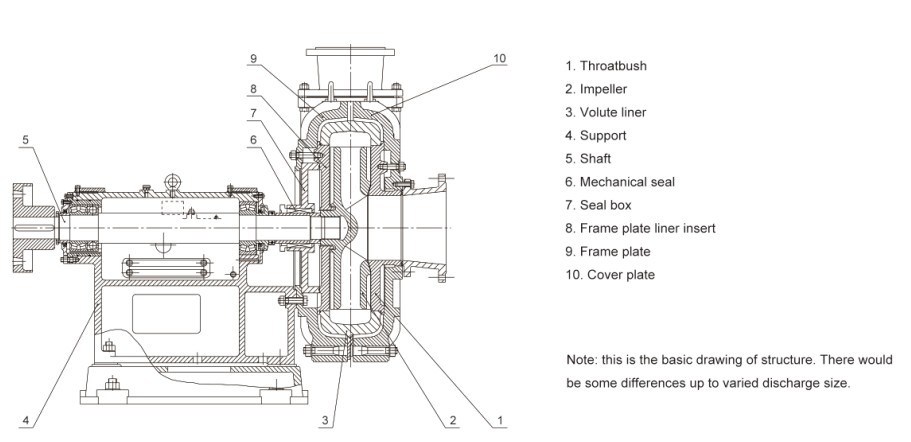

The standard EZ pump structure:

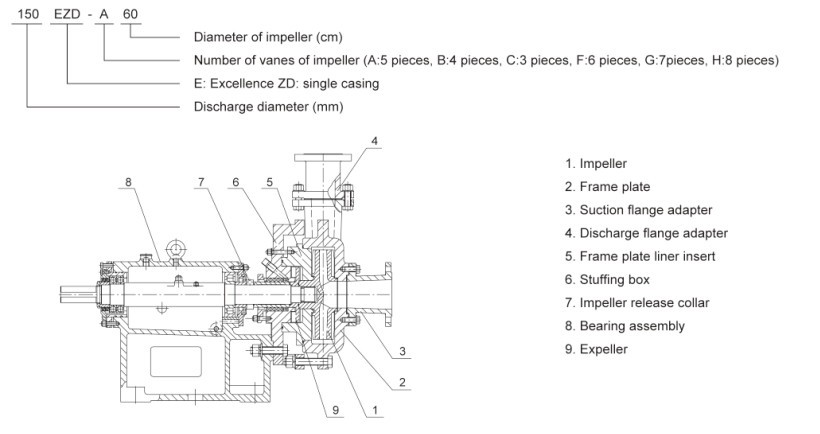

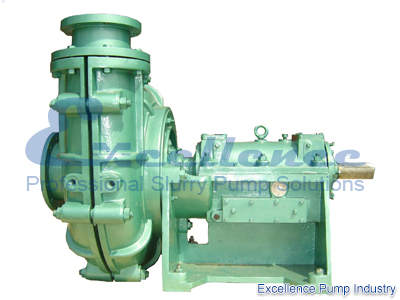

Single casing horzontal slurry pump structure:

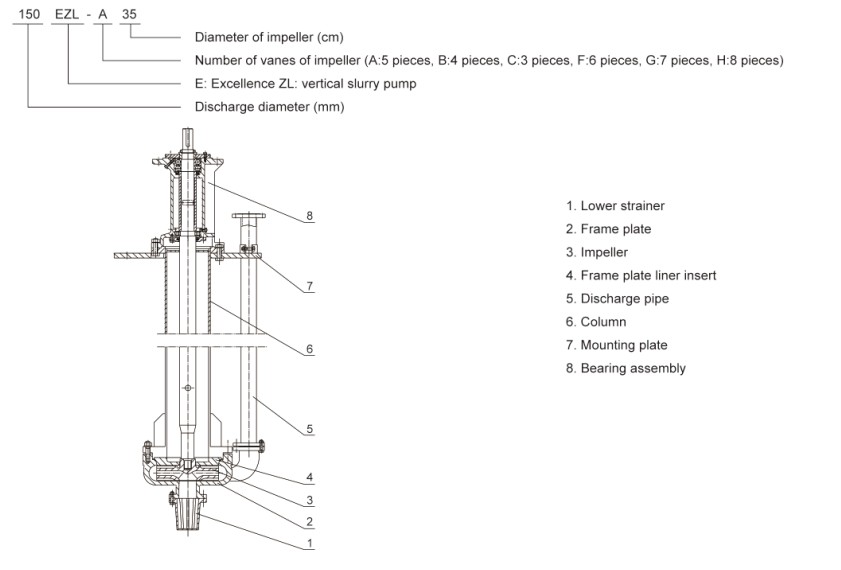

Vertical slurry pump structure:

Standard Configuration

If there isn't any specified requirment, Excellence pump provides the following standard configuration:

Shaft seal type:
```
Centrifugal seal with packing seal
```
Discharge direction:
```
Upright
```
Connection type:
```
Customized
```
Pump color:
```
Green
```
Package:
```
Fumigation-free wooden packaging
```

If you want to know more pump standard ,please click here to ask for sales engineer.
